RAnTing about my new Project

First, we need to define the function in a way, AnT can simulate it. For this, we need to compile a C++ function with the signature

bool <function_name>(
    const Array<real_t>& currentState,
    const Array<real_t>& parameters,
    Array<real_t>& RHS
)

to an object file.

For our logistic map, we create a C++ file called logistic.cpp with the following content.

#include "AnT.hpp"

#define a parameters[0]

#define x currentState[0]
#define y RHS[0]

bool logistic(
    const Array<real_t>& currentState,
    const Array<real_t>& parameters,
    Array<real_t>& RHS
) {
    y = a * x * (1 - x);
    return true;
}

extern "C"
{
    void connectSystem() {
        MapProxy::systemFunction = logistic;
    }
}

As you can see, I defined macros for the state, $x$, the parameter, $a$, and the output of the function, $y$, to make the code more readable. We also need to import the library AnT.hpp and export our function as the systemFunction.

We then can compile the file with a bash script that is part of AnT by executing the following command in the directory, our function implementation source file is in.

/path/to/AnT/bin/build-AnT-system.sh

Next, we need to tell AnT, how to simulate the function. Let's say we want to know the periods of the cycles at different values for the parameter $a$. For this, we create a new file called periods.ant with the following content.

dynamical_system = {
    type = map,
    name = "logistic map",
    parameter_space_dimension = 1,
    parameters = {
        parameter[0] = {
            value = 1.25,
            name = "a"
        }
    },
    state_space_dimension = 1,
    initial_state = (0.5),
    reset_initial_states_from_orbit = false,
    number_of_iterations = 20000,
    s[0] = {
        name = "",
        equation_of_motion = "0"
    }
},
scan = {
    type = nested_items,
    mode = 1,
    item[0] = {
        type = real_linear,
        points = 3000,
        min = 0,
        max = 4,
        object = "a"
    }
},
investigation_methods = {
    period_analysis = {
        is_active = true,
        max_period = 128,
        compare_precision = 1e-09,
        period = true,
        period_file = "period.tna"
    }
}

As you might recognize, or rather not recognize, this is not a standardized configuration language such as yaml or json. Rather, it is its own configuration language. It has a lot more options that are not shown here for brevity. This configuration language can be a mouthful, especially if many of the unused options are listed (example).

Here are the most important things, the example configuration file specifies.

1. The dimension of the parameter space to be one and
2. The only parameter to be $a$ with a value of $1.25$ (this value is overwritten later).
3. The dimension of the state space to be one and
4. The initial state to be $0.5$.
5. The maximum number of iterations to simulate the function to be $20,000$.
6. To scan the function for $3,000$ points of the parameter $a$ in the range $[0, 4]$.
7. To analyze the period of the function with a maximum period of $128$ and a precision of $1 \cdot 10^{-9}$ and write the result to a file named period.tna.

Executing the simulation is not that bad actually. We just have to call the compiled AnT binary and set the system function object file and the config file per command line options. Running AnT without arguments will diplay the usage instructions.

--//------------/-------------------------------
 // AnT 4.669  / Release 4c, (c) 1999-2011
//------------/---------------------------------

usage: ../../../AnT/bin/AnT <systemname> [{-i | -I | --initialization} <configfile>] [{-m | -M | --mode} <runmode>] [{-s | -S | --server} <server name>] [{-p | -P | --port} <portnumber>] [{-n | -N | --points} <scanpoints>] [{-t | -T | --time} <seconds>] [{-v | -V | --version}] [{-v | -V | --log}] [{-h | -H | --help}]

<systemname>
    complete path and filename (without extension)
    of the shared library containing at least the system
    function for the dynamical system to be simulated.

Options:
{-i | -I | --initialization} <initialization file>
    complete path and filename of the initialization file
{-m | -M | --mode} <runmode>
    where runmode is one of 'standalone',
    'server' or 'client'. Default is 'standalone'.
{-s | -S | --server} <server name>
    for runmodes 'server' and 'client' only.
    Default is the standard hostname of the current system.
{-p | -P | --port} <portnumber>
    for runmodes 'server' and 'client' only.
    The default port is 54321.
{-n | -N | --points} <scanpoints>
    for runmode 'client' only.
    The number of scanpoints the client
    should fetch from the server. Default is 50.
{-t | -T | --time} <seconds>
    for runmode 'client' only. The (approximate) number
    of seconds the client should be busy before asking
    for new scan points from the server.
    This option overrides the '-n' option.
{-v | -V | --version}
{-l | -L | --log} write the log-file 'transitions.log'
    which shows the internal structure of the current
    simulator instantiation.
{-h | -H | --help}

Error::Exit: abnormal program termination!

So following these instructions, we execute the following command.

/path/to/AnT/bin/AnT logistic.so -i periods.ant

Once the simulation completed, we can check the output.

> head period.tna
0.000000000000000e+00  1
1.333777925975325e-03  1
2.667555851950650e-03  1
4.001333777925975e-03  1
5.335111703901300e-03  1
6.668889629876626e-03  1
8.002667555851949e-03  1
9.336445481827275e-03  1
1.067022340780260e-02  1
1.200400133377793e-02  1

The output consists of all the scan points in one line each. On the left, the value of the parameter $a$ and on the right the period of the system function at that point. A period of $1$ means that a fixed point exists for that value of $a$.

In my Master Thesis, I used gnuplot to generate images from this data. This technique was taught to my by my supervising professor. As well as using fragmaster, pdfcrop, and convert to create better quality images from the gnuplot images.

Let's start off with the function signature of single threaded scanning function.

pub fn scan<Vector, State, Parameters, Result>(
    vector_generator: impl VectorGenerator<Vector = Vector>,
    parameter_adapter: impl ParameterAdapter<State, Parameters, Vector = Vector>,
    simulate: impl Fn(State, &Parameters) -> Result,
) -> impl Iterator<Item = (State, Parameters, Result)>
```

As you can see, it receives 3 input parameters and returns an iterator of results. The first parameter is called the vector_generator. It generates scan points, which are parameter agnostic at this point. The type of the vector is generic, to allow maximum flexibility when implementing vector generators. But of course, the library provides vector generators for the most common use case — linearly distributed scan points in one or two dimensions.

• VectorGenerator1D
• VectorGenerator2D

The second parameter is called the parameter_adapter. It translates scan vectors into an initial state and parameters. Again, the library provides implementations for the most common use case — linearly distributed changes to one or two parameters, respectively.

• ParameterAdapter1DEven
• ParameterAdapter2DEven

The task of providing the initial states and parameters for the scan is split into these two steps to reuse the parameter adapters for parallel scans. It is the responsibility of the vector generator to define how the work is split between workers by providing a ParallelIterator of chunks of scan points. These chunks of scan points are normal Iterators of scan points.

The last parameter is called simulate. This parameter is not a struct that implements a trait as the last two parameters. Instead, it is a function that performs the simulation and analysis of the system function given an initial state and parameters. The reason for this difference is performance. An analysis showed that embedding the logistic system function into a struct that performed period analysis was magnitudes slower than writing a simulate function, that calles a library function to perform the period analysis. This is because of dynamic dispatch. Calls to the system function are the performance bottleneck of the simulations and therefore should be optimized as much as possible. As mentioned before, the library provides two different analysis functions.

• period::simulate
• condition::simulate

You can call these functions in your own custom simulate function, passing in your system function.

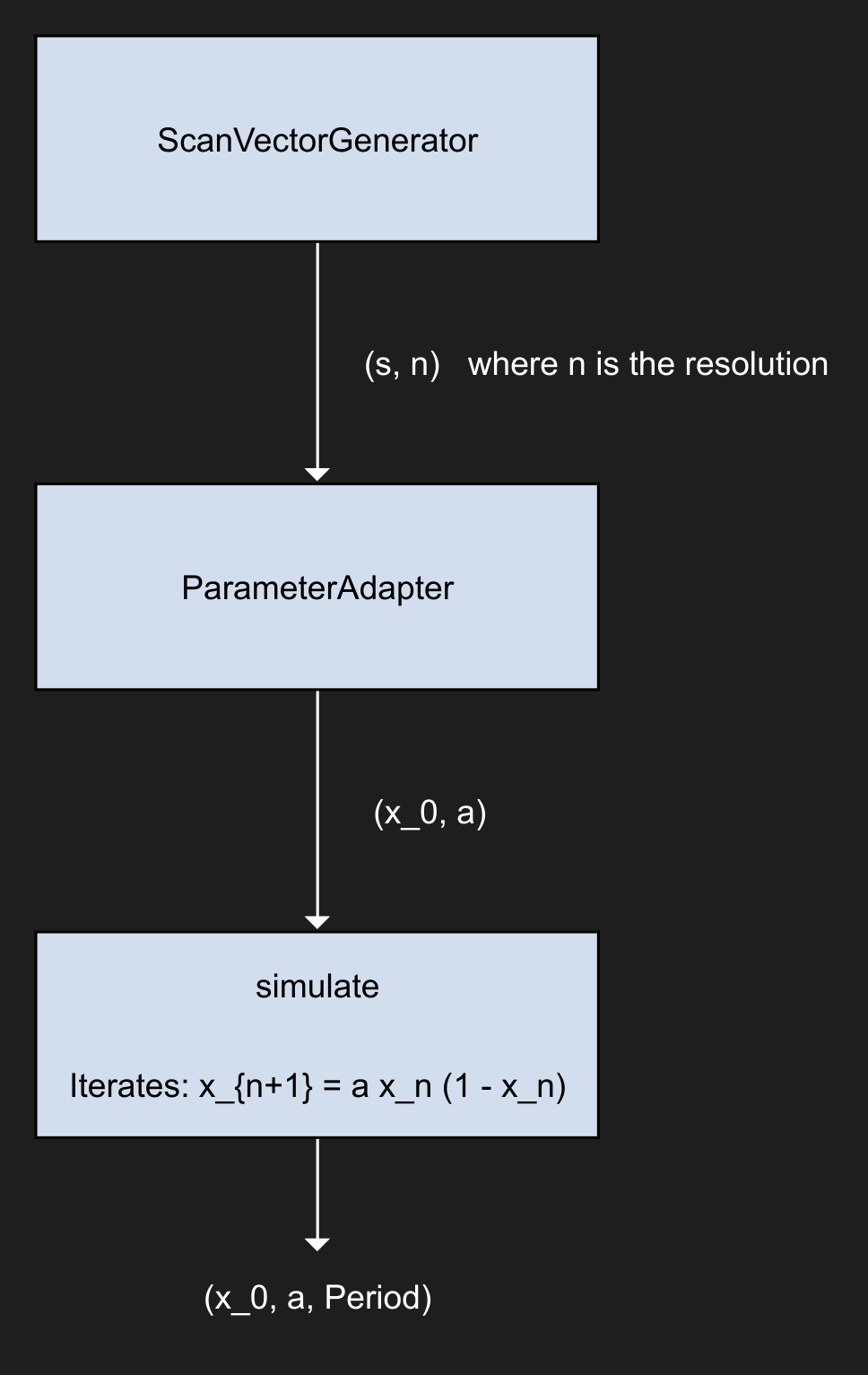

I have to wrap up this post, so here is a quick sketch of the design described above.

Stay tuned for my next RAnT!
